1.Wiring Diagram for Pathfinder with OEM Navigation
Use the FX35 Hi wiring cable. Connect the foam connector on the main harness with the same letter car side connectors.
2.Wiring Diagram for Non-Navi

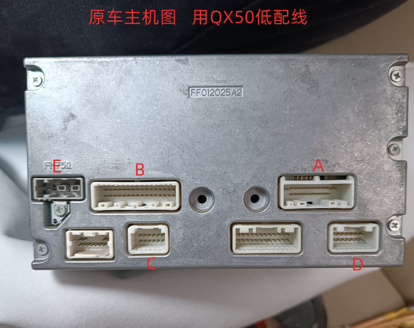

Use the main harness with tag QX50. Connect the foam connector on the main harness with the same letter car side connectors.

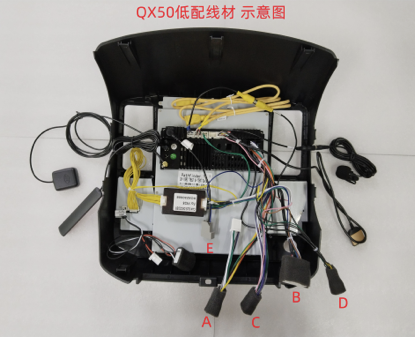

2．竖屏接线示意图QX50低配线材
The black box in the last picture stays. DO NOT remove the black box.
DO NOT connect or disconnect when the power is on. Power the car off and turn off accessory power too.
