- Civic 2016+ Installation

*Factory Amplifier bypass harness: "AX-AB-HN1". Search part number on Google and it can be found on multiple dealers.

For factory radio disassembly, please follow this video:

https://www.youtube.com/watch?v=HGVUd5V9eUQ

Please follow this video for harness:

https://www.youtube.com/watch?v=aXXh9DbWF64

The harness shown in the video might be slightly different. For factory backup camera, connect the yellow male RCA from main harness to a female yellow RCA with tag "camera". For aftermarket camera, only use the female yellow RCA.

For the rest of the harness, connect the matching ones. If you have factory amplifier, you will need to manual wiring from main harness directly to speakers. Thus for plug and play, vehicles with factory amp is not recommended.

For auto/manual ac setting adjustment, please go to setting - advanced/install set - 8861 - car type - choose either Siyu H for Dual Zone AC or Siyu L for Single Zone AC.

If you are not sure about the AC type, here is the reference:

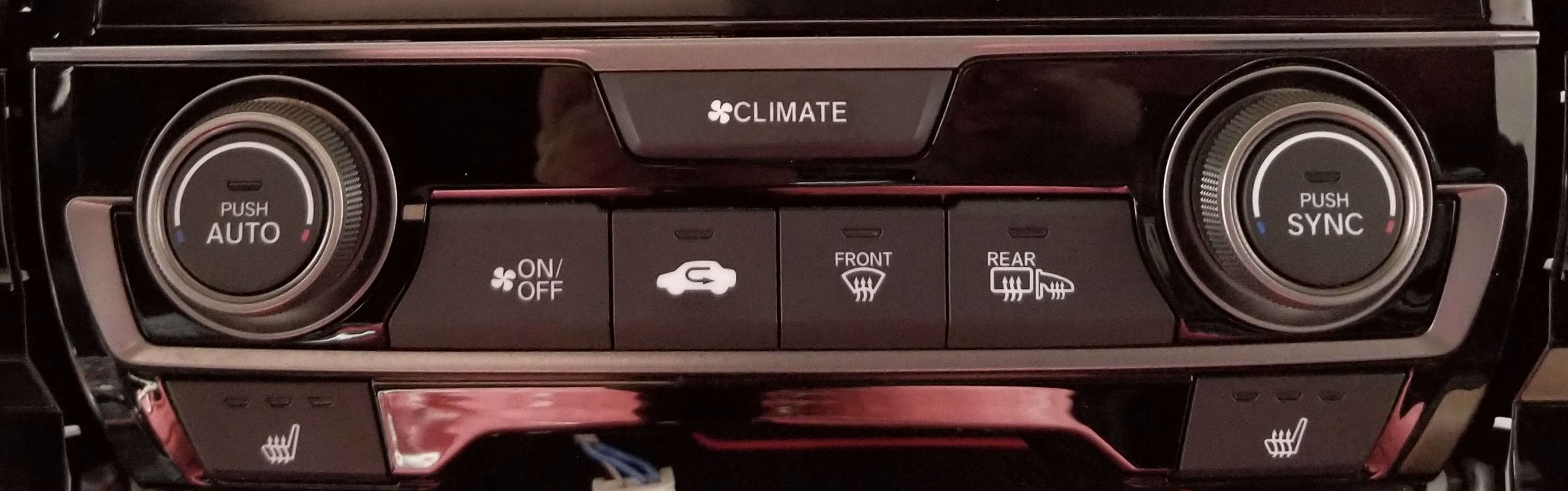

Dual Zone AC:

Single Zone AC:
