- 07-14 Escalade Installation and Rear LCD Retaintion

For installation, please follow this video to remove your factory radio:

https://www.youtube.com/watch?v=uMjwhOeoD4U

Then plug in the matching wiring harness in the package to the radio:

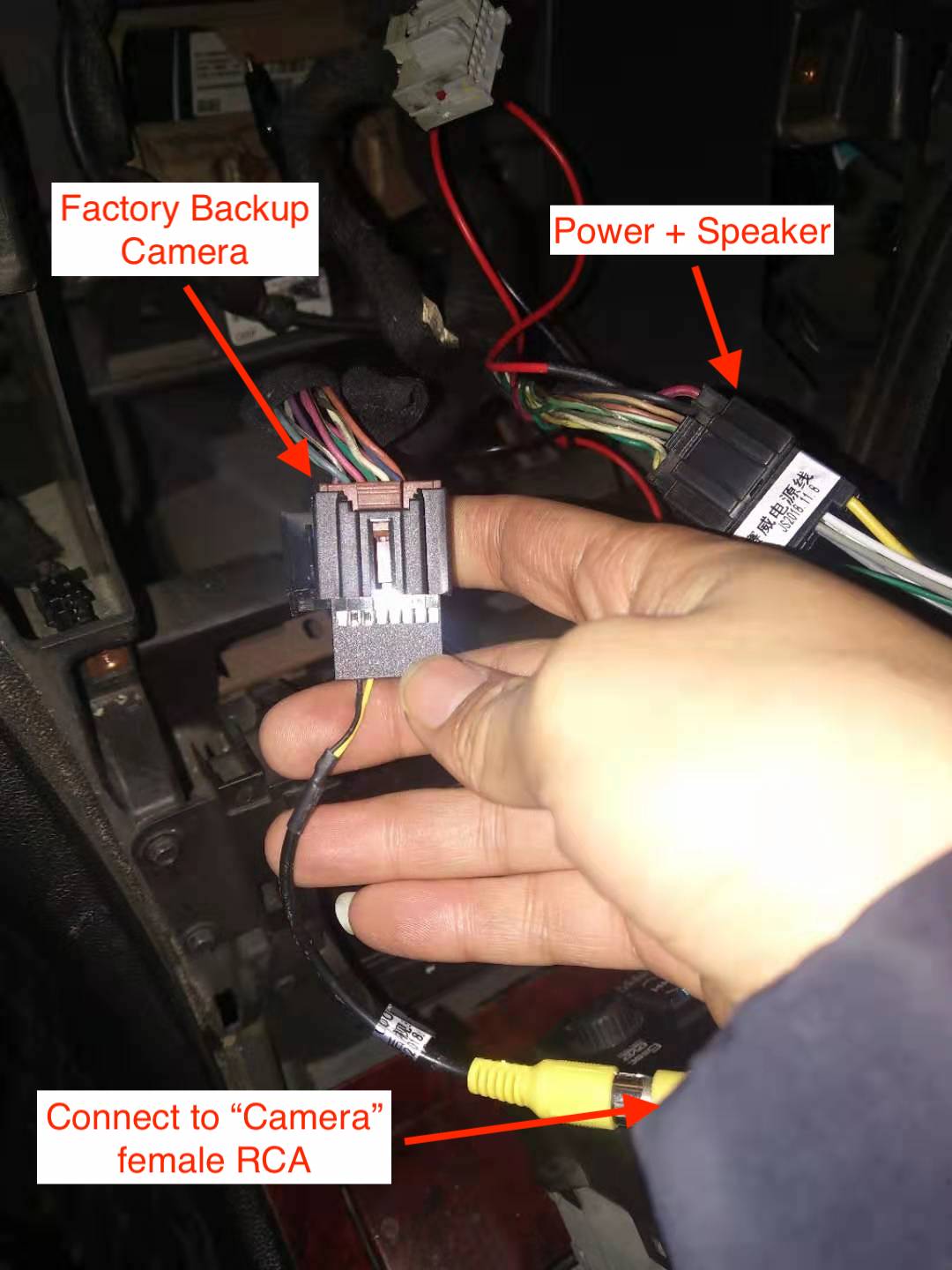

Connect the following to the vehicle:

Then line up the radio to the four mounting point on the vehicle and screw on four bolts to secure the radio in place. You will need to loosen the metal plate on the radio to get a good line up to the vehicle.

To retain rear seat entertainment, you need to purchase this harness from PAC:

https://catalog.pac-audio.com/catalog/radio-replacement/gmrvd?search_query=gmrvd&results=2

Rear speaker connection:

If your vehicle comes with Bose sound system and only front speakers are working, please locate the factory Bose amplifier and connect the front speaker wire to the rear.

Diagram below shows two possible pinouts. Please connect the midrange speaker as well if your connector comes with them.
