- 2006 - 2008 Infiniti FX 35 Installation Note

**Please disconnect the negative lead on the battery before installing.**

Installation (in Chinese):

https://m.youku.com/video/id_XNDQwNjUwMjgyNA==?&source=

To remove factory radio, please refer to this video:

https://www.youtube.com/watch?v=_USEuY6pcf4

After that, connect the matching harness to the vehicle then connect the radio to it.

There is a black wire with half moon clip on the main harness. It is ground wire of the radio and connect and secure the wire to metal frame in the dash.

There are couple rectangle plugs besides the main power connector.

The black connector with RCAs provides video input port for backup camera, front camera and side camera. The brown wire is backup trigger. It triggers the screen when 12v is connected.

The yellow connector has pre-amp output for aftermarket amp.

Brown connector provides USB connection.

If your a/c has interference or slow in response, please refer to the guide below:

Video on how to remove the glove compartment. Please follow the video up to 3:00

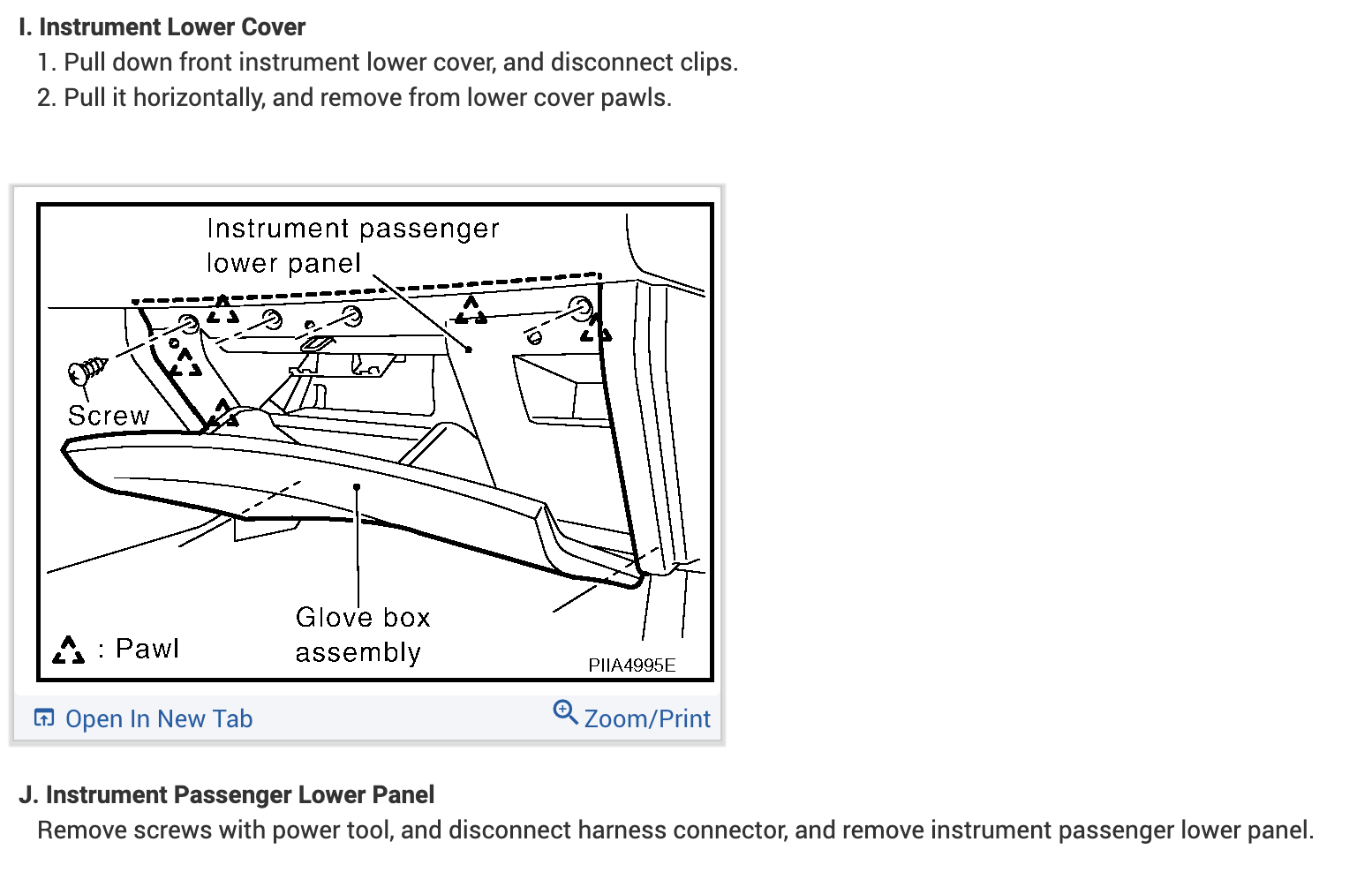

First remove glove compartment:

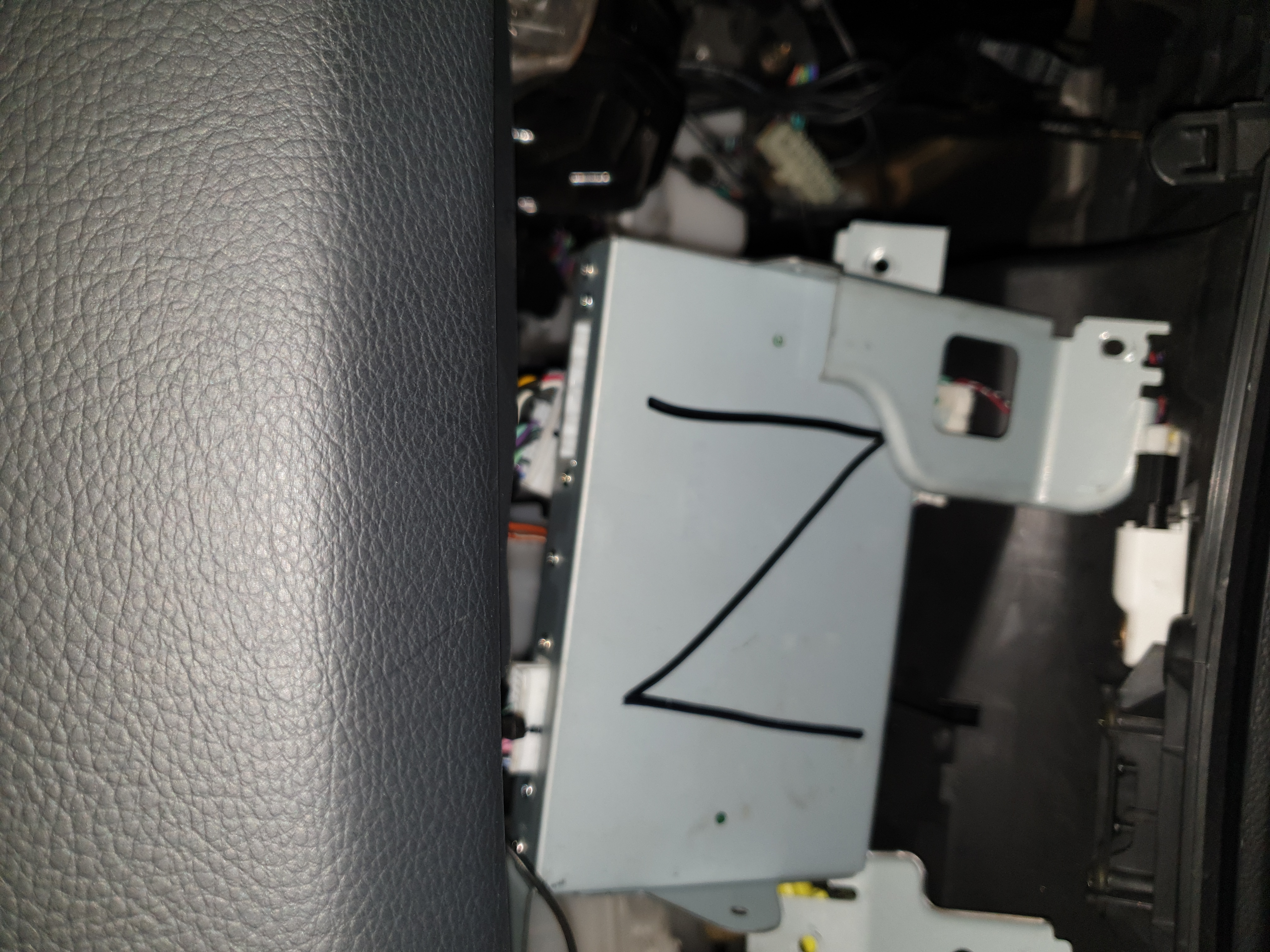

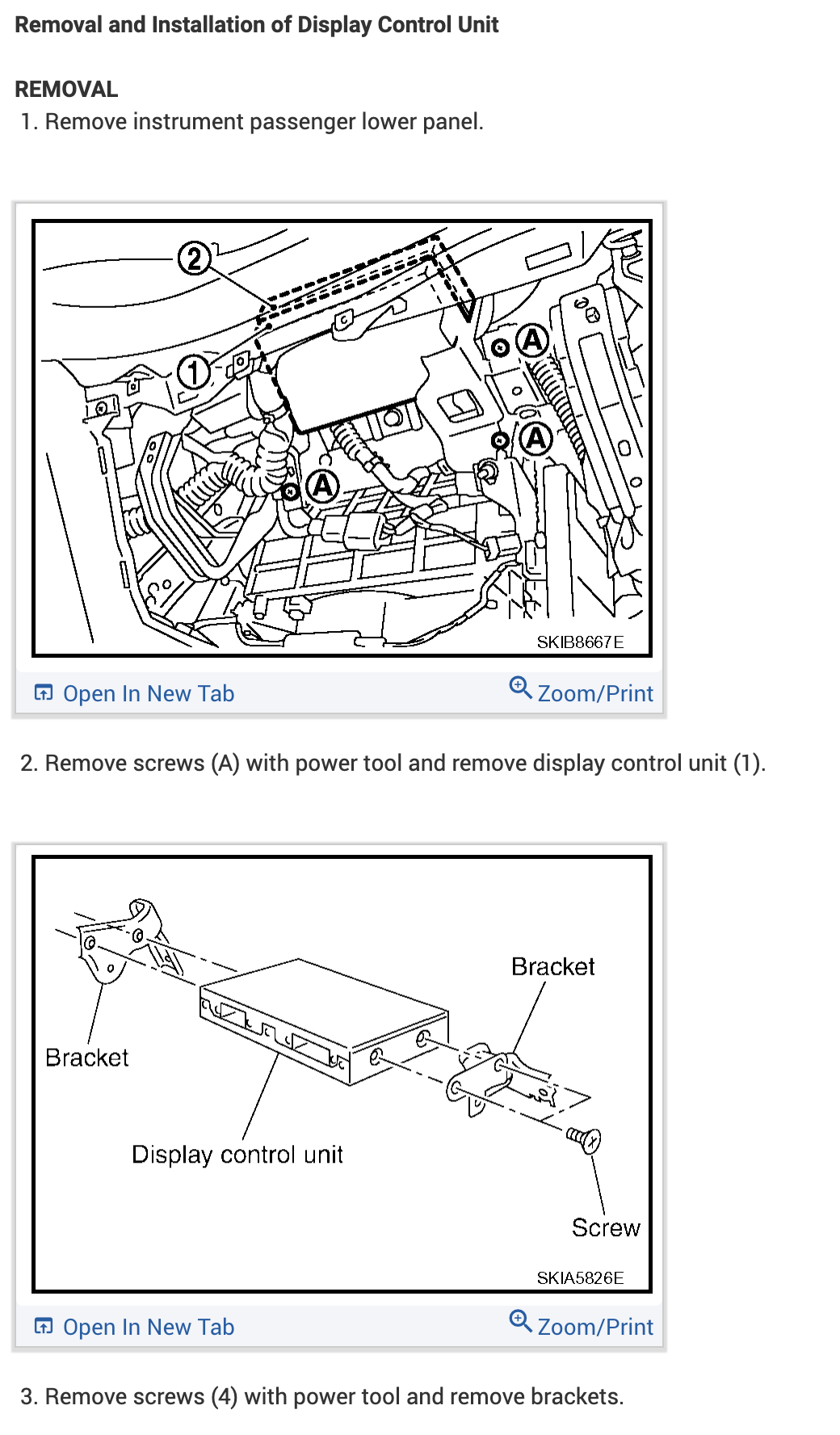

After that, locate display control unit, you do not need to completely remove it:

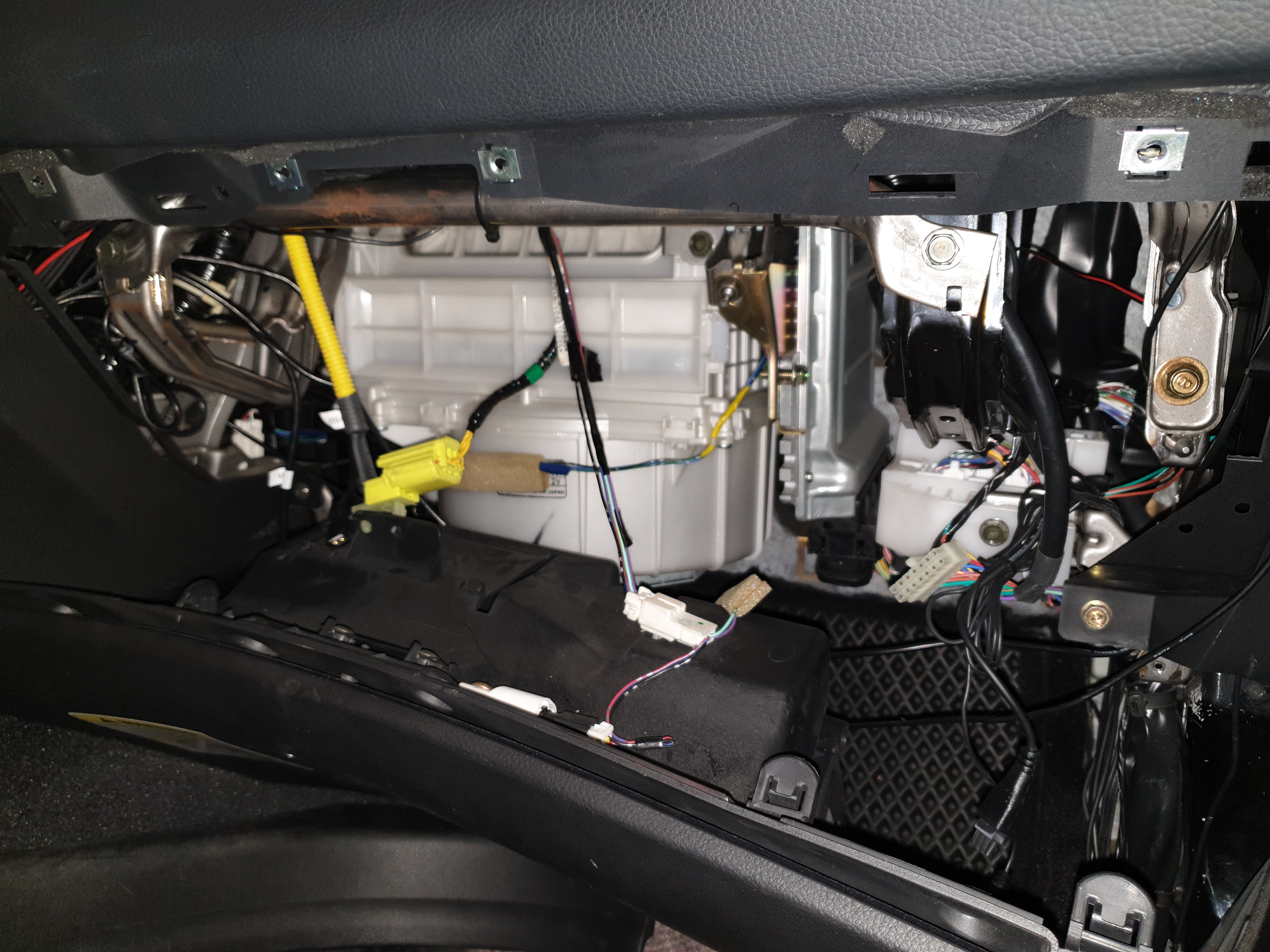

Unplug a 32pin connector:

The Connector needs to stay disconnected.

After all wires are properly connected, reverse the installation steps in the video and put the components back.

OEM Camera Retention Wiring

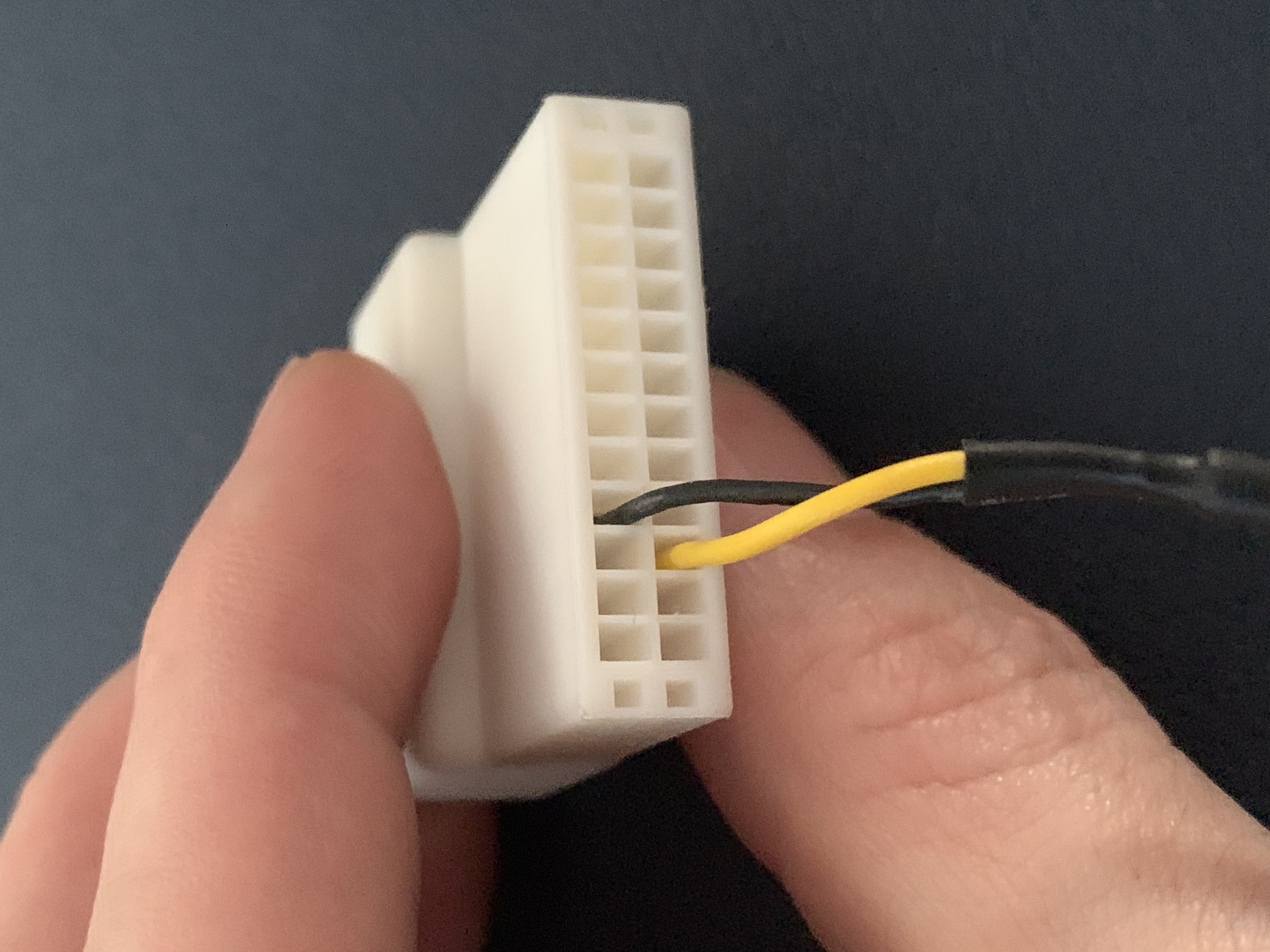

Prepare a male RCA cable with two loose leads on the other end.

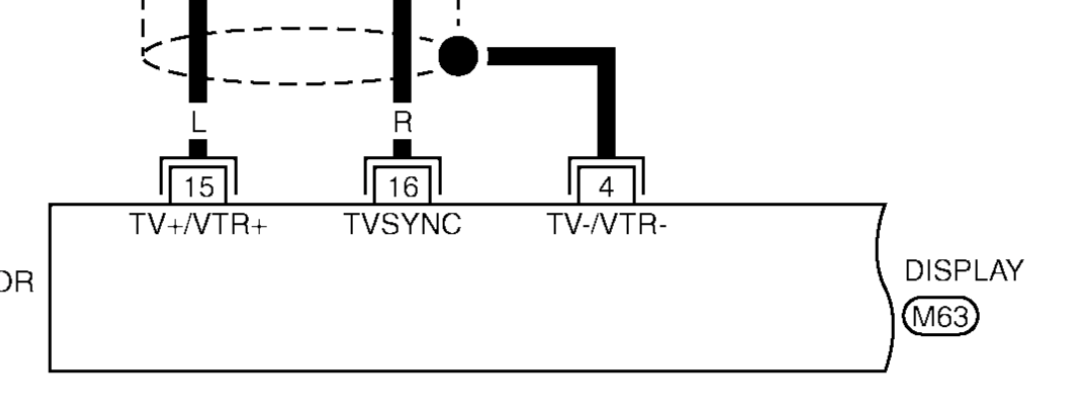

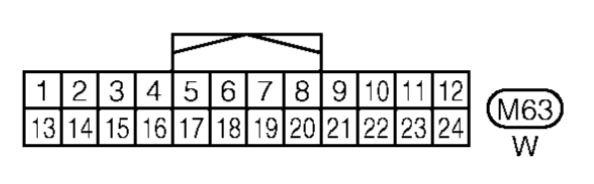

Please locate pin#4 and pin#15 on M63, which is a 24 pin connector behind factory display.

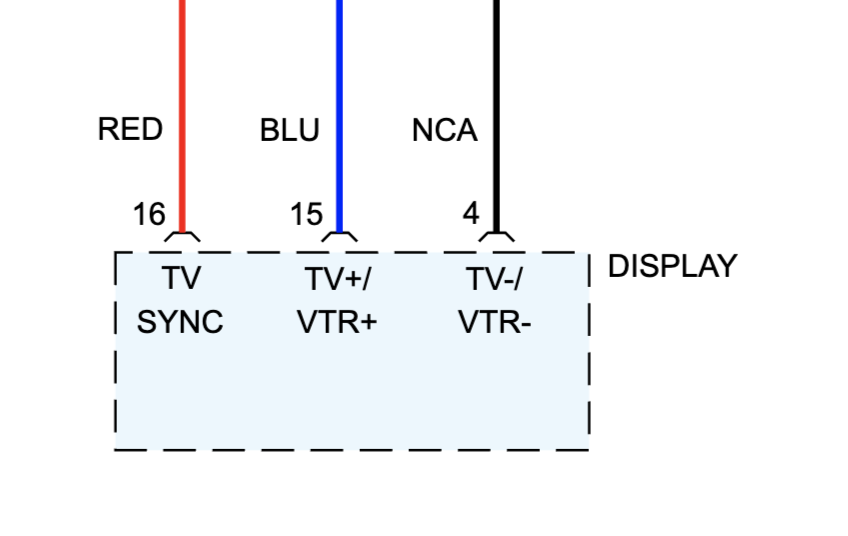

Connect Pin#4 to negative lead of the RCA cable and pin#15 to positive lead of the RCA cable.

Pin#4 has a black wire and Pin#15 is a blue wire on the factory side.

After making connection, connect the male RCA to a female yellow RCA with tag "camera" to send the signal to the radio.
