- Lexus RX 2004-2009 Installation Instruction

Factory Base Model:

https://v.youku.com/v_show/id_XNDQ1MjI1MDcwOA==

For airbag light issue on dashboard, please connect this connector here:

Factory Premium Model:

Power off your vehicle and remove key before install.

Please follow the video below to remove the factory AC control and stereo:

https://www.youtube.com/watch?v=4myfQSJNA_0

After that, please connect the matching main harness to the vehicle's connectors. Not all connectors from vehicle and from the radio are used.

Connect the CANBUS decoder box to the main harness.

After, please connect the color connectors to the back of the unit. The rectangle plugs should just slide in and please do NOT force the plug into the place:

The black connector with RCAs provides video input port for backup camera, front camera and side camera. The brown wire is backup trigger. It triggers the screen when 12v is connected.

The yellow connector has pre-amp output for aftermarket amp.

Brown connector provides USB connection.

Reverse the steps to install the radio back on.

For sound issue, please refer to this guide:

https://rrcs.zendesk.com/hc/en-us/articles/360038379712-Lexus-with-Partial-Sound-or-No-Sound

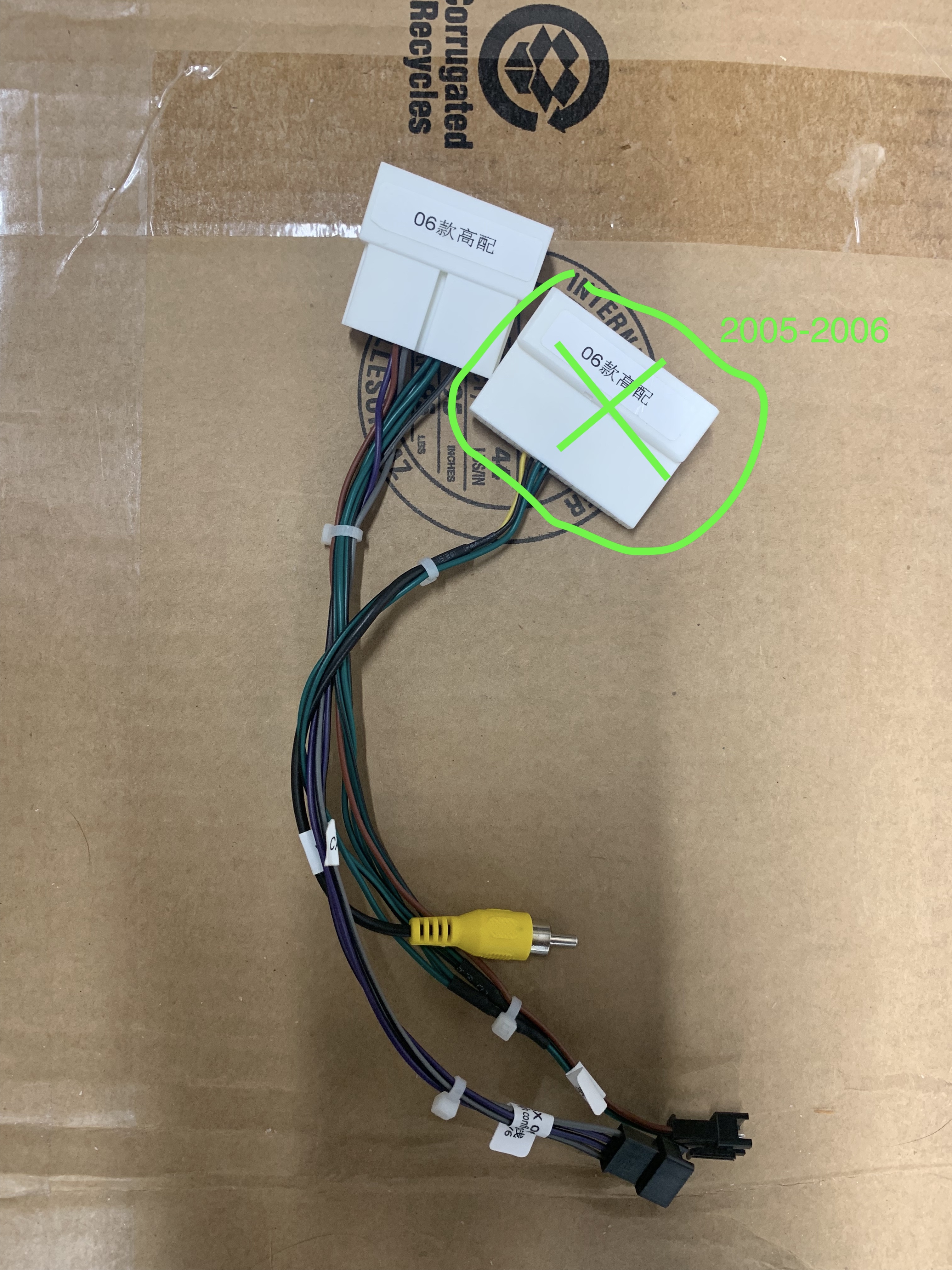

For 2004 model, please use this pigtail harness:

For 2005-2009 model, please use this pigtail harness:

If you have premium model of 2005 - 2006 and experiencing following issue:

1. hazard not working

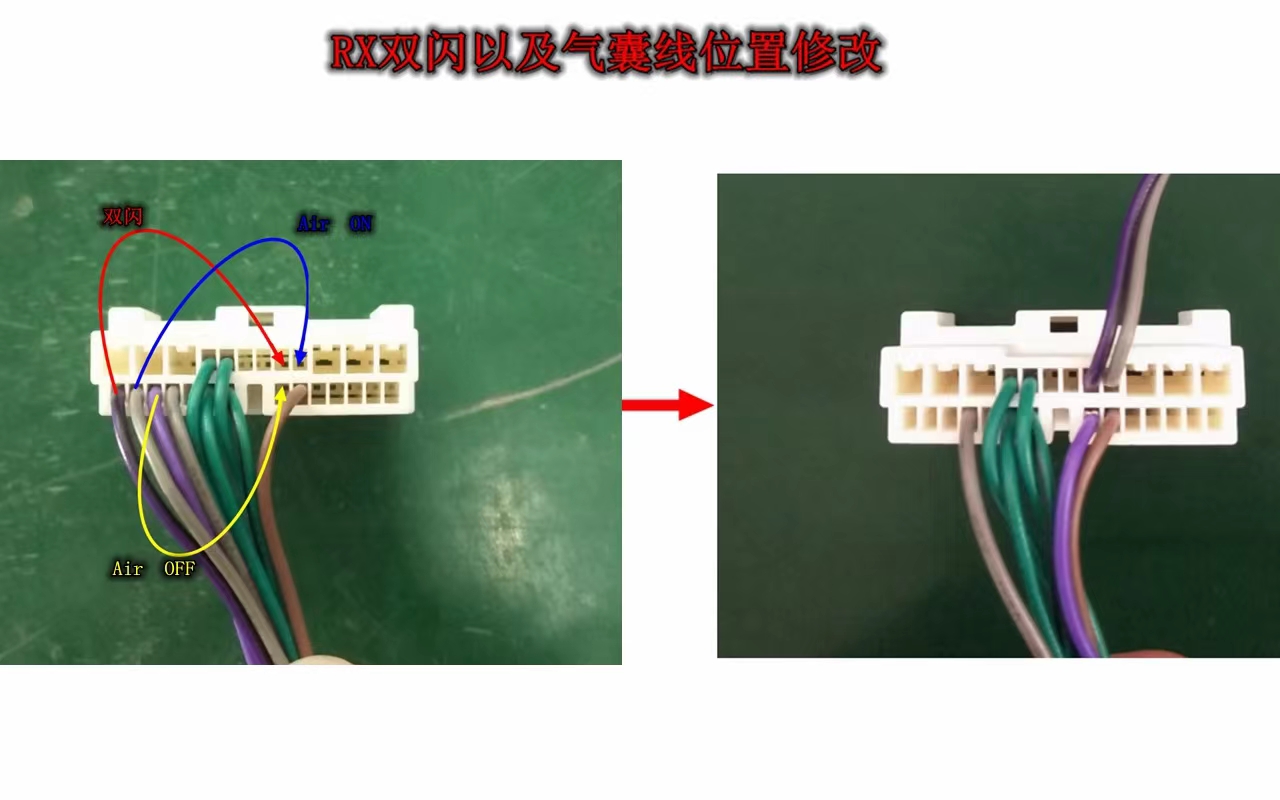

2. airbag light on dashboard is on, please modify this connector:

Airbag light:

For factory without navigation, please locate this connector. The perspective of the diagram below is from looking at the metal terminal of the factory connector. Not from the side where the wires are coming out.

Locate pin 6 and pin 13 on the connector. Connect the airbag light adapter chip's orange wire to terminal 13 and purple wire to terminal 6. We recommend use T tapping to connect to the wires behind.

The red wire on the adapter chip will need to connect to ACC, which is a red wire on the radio's main harness. Please refer to the pinout diagram at the back of the radio to locate the wire.

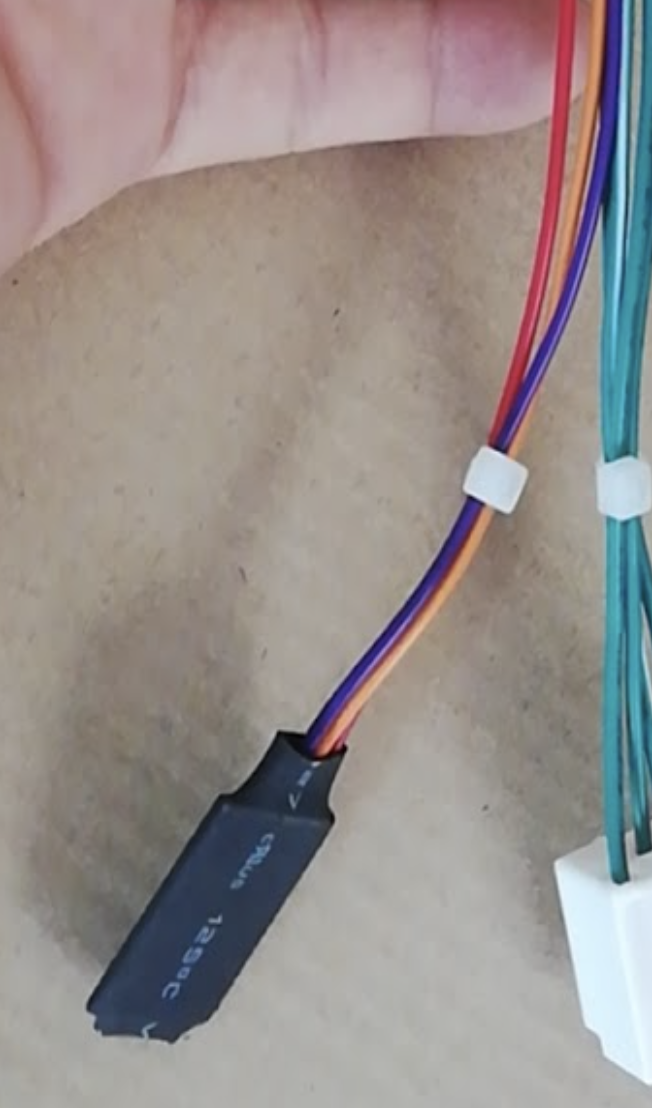

Airbag light adapter chip:

Wiring up factory camera for 2017 and after:

Please find this connector below:

Please connect a male RCA to pin 27 and pin 28.

V+: RCA+

V-: RCA-

CA+: 6V

CGND: Ground
